5t Side load forklift
Basic Info
Model No.: WCD-50-W34
Product Description
Main features:
1. The machine adopts the current international popular large arc, flow-type design, beautiful and generous.
2. New structural design, high body strength, strong carrying capacity, low vibration and noise.
3. In line with ergonomic flow-shaped large space cab, wide field of view, comfortable operation.
4. Standard shock-absorbing seats and dual-camera image system, which makes driving more comfortable, safer and more efficient.
5. High-performance battery, strong power, reliable performance and strong battery life.
6. Reliable leg cylinder protection function, effectively guarantee safe operation.
7. Four-wheel hydraulic braking design and reliable braking performance.
8. Digital special instrument, friendly human-machine interface, driver master the condition of the car timely and accurately.
9. Increase the front driver's passage to facilitate narrow space driver access to the cab
10. Add front and rear bumpers to effectively protect the body

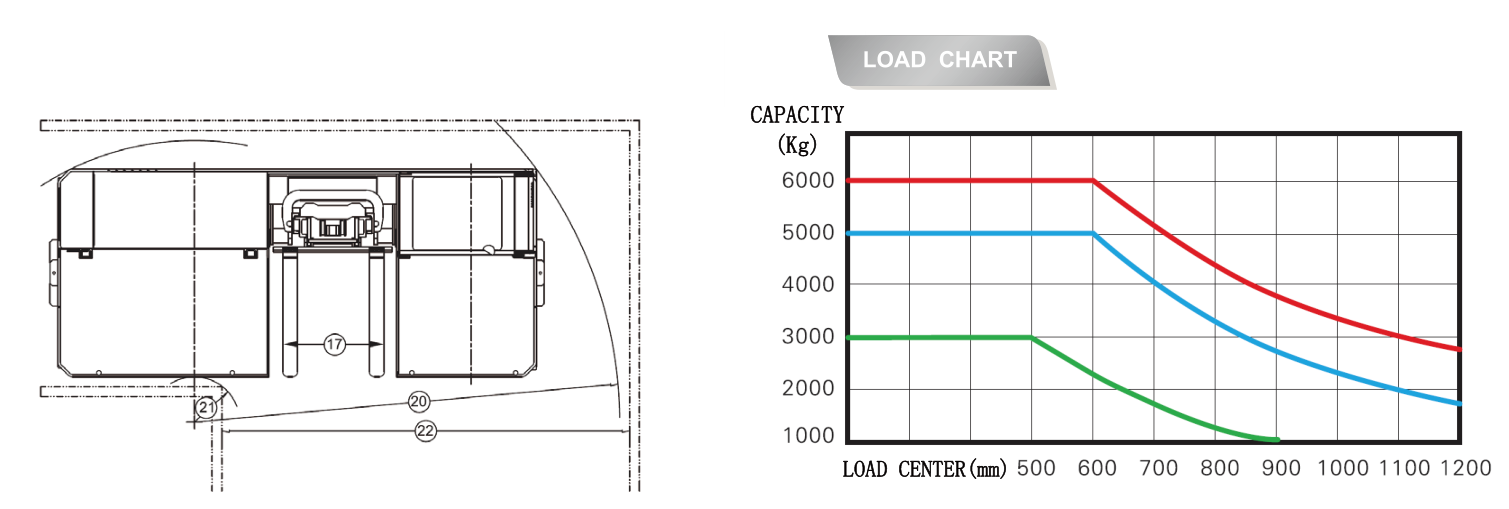

| Distinguishing mark | 1.1 | Manufacturer (abbreviation) | WINGS | |
| 1.2 | Manufacturer's type designation | WCD-50-W34 | ||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Diesel | ||
| 1.4 | Rated capacity/rated load | Q(kg) | 5000 | |
| 1.5 | Load centre distance | c(mm) | 600 | |
| 1.6 | Load distance, centre of drive axle to fork | x(mm) | 660 | |
| 1.7 | Rear overhang | mm | 1430 | |
| 1.8 | Wheelbase | y(mm) | 2800 | |
| Weight | 2.1 | Service Weight | kg | 8500 |
| Tyres,chassis | 3.1 | Tyre size, front | 300-15-18RP | |
| 3.2 | Tyre size, rear | 300-15-18RP | ||
| 3.3 | Tread, front | b10(mm) | 1750 | |
| 3.4 | Tread, rear | b11(mm) | 1750 | |
| Dimensions | 4.1 | Tilt of mast/fork carriage forward/backward | α/β(°) | 3月5日 |
| 4.2 | Height, mast lowered | h1(mm) | 2865 | |
| 4.3 | Free lift | h2(mm) | 300 | |
| 4.4 | Lift | h3(mm) | 3600 | |
| 4.5 | Height, mast extended | h4(mm) | 4575 | |
| 4.6 | Height of overhead cabin | h6(mm) | 2765 | |
| 4.7 | Overall length | l1(mm) | 4890 | |
| 4.8 | Overall width | b1(mm) | 2100 | |
| 4.9 | Fork dimensions ISO 2331 | s/e/l(mm) | 1200*150*60 | |
| 4.1 | Ground clearance, laden, below mast | m1(mm) | 165 | |
| 4.11 | Turning radius | Wa(mm) | 4700 | |
| 4.12 | Min. right angle stacking aisle width | mm | 3800 | |
| 4.13 | Platform height | mm | 1050 | |
| 4.14 | Platform width | mm | 1200 | |
| Performance data | 5.1 | Travel speed, laden/unladen | km/h | 24/25 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.320/- | |
| 5.3 | Mast moving out speed | m/s | 0.3 | |
| 5.4 | Gradeability, laden/unladen | % | 20/- | |
| 5.5 | Service brake | Vacuum assist | ||
| 5.6 | Parking brake | Mechanical | ||
| Combustion engine | 6.1 | Engine manufacturer type | 1104D-44T | |
| 6.2 | Engine power according to DIN ISO 1585 | kw | 62 | |
| 6.3 | Rated speed | min | 2200 | |
| 6.4 | Number of cylinders/displacement | (-)/(cm³) | -/4400 | |
| 6.5 | Battery voltage/nominal capacity | V/AH | 12*2/90 | |
| 6.6 | Rated torque | N·m/r/min | 354/1400 | |
| 6.7 | Transmissions Manufacturer | CHINA | ||
| 6.8 | Transmissions Type | Powershift | ||
| 6.9 | Stage FWD/RVS | 2/2 | ||
| Addition data | 7.1 | Operating pressure for attachments | bar | 180 |
| 7.2 | Fuel tank capacity | liter | 100 |
Applications: As lifting and transporting machineries, WINGS FR-series Diesel Forklift, K--series Diesel Forklift, LPG & Gasoline Forklift, Side Load Forklift, Rough Terrain Forklift and Electric Powered Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. The fork lift truck can also be used for bulk goods and unpacked good loading, unloading and handing after assembled with other attachments.
